The BONRXIN BCB-M600 is a laser fume extractor specifically designed for effective odor treatment, offering excellent performance in both dust filtration and odor neutralization. It features a multi-layer filtration system composed of 0.3μm PP filter cartridges and activated carbon filter cartridges.
This system efficiently captures particulate pollutants larger than 0.3μm, achieving a filtration efficiency of up to 99.7%. The substantial volume of activated carbon media ensures rapid adsorption of common harmful gases such as benzene, ketones, alcohols, alkanes, and other mixed organic compounds.
After filtration, the purified air can be safely discharged directly indoors, making the unit highly suitable for enclosed industrial environments. The BCB-M600 is also flexible in configuration, offering a variety of filter cartridge options. Depending on specific application needs, different filter combinations can be used to optimize performance for various processing conditions.
Key Advantages of BONRXIN BCB-M600 Laser Fume Extractor
- Centrifugal Fan
Equipped with a brushless DC motor centrifugal fan with a lifespan of up to 40,000 hours. The fan requires no maintenance and offers high reliability. It operates at low noise levels while delivering high rotational speed, strong air pressure, and efficient performance.
- LCD Display Panel
Features a microcomputer-controlled LCD display with programmable microcontroller software for digital operation. The user interface is intuitive, and operating parameters are clearly displayed. The system automatically detects fan operation, and issues alerts for pipeline blockages or filter saturation. Low-voltage control enhances overall safety.

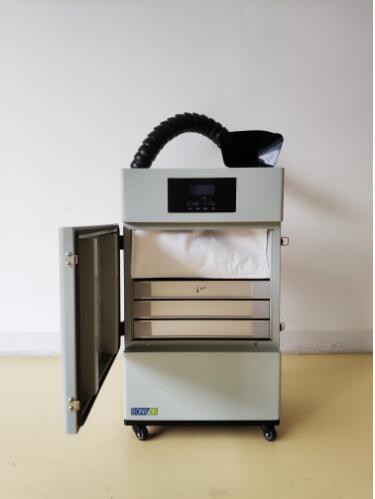

- Multi-Stage Filtration System
The unit adopts a three-stage filtration system：
A 5μm dust collection bag for coarse particle filtration
A 0.3μm imported PP filter cartridge
Activated carbon filter cartridge
These layers provide sequential filtration based on particle size, ensuring complete removal of particles above 0.3μm. The final stage utilizes high-efficiency activated carbon to adsorb harmful gases, resulting in clean air discharge that meets safety standards.
- High-Capacity Dust Collection Bag
The extractor is equipped with a six-layer high-volume dust collection bag capable of capturing particles larger than 5μm. The bag holds a large amount of particulate matter and can be easily removed, emptied, and reused, offering a time-saving and user-friendly maintenance solution.
Recommended Replacement Cycle for Consumables – BONRXIN BCB-M600 Laser Fume Extractor
Dust Collection Bag: 1–3 months
PP Filter Cartridge: 1–3 months
Activated Carbon Filter Cartridge: 3–6 months
Note: Replacement cycles may vary depending on the pollution level and actual working environment. Please adjust accordingly.
BONRXIN BCB-M600 Laser Fume Extractor Specifications
Input Voltage: AC220V/50Hz
Rated Power: 350W
Airflow Capacity: 612m³/h
Static Pressure: 1050Pa
Rotational Speed: 4800rpm
Inlet/Outlet Diameter: φ50mm / φ100mm
Machine Dimensions: 400×320×740 (mm)
Net Weight: 35kg
|
