The BONRXIN BCA-S500 fume processor utilizes a multi-stage filtration and purification system with a filtration efficiency of up to 99.9%. Compared to traditional single-cartridge filter systems, this advanced setup provides more targeted and effective purification in applications such as industrial marking, welding, and the treatment of hazardous gases. It ensures high-performance removal of toxic fumes while safeguarding worker health and supporting compliance with occupational safety standards.

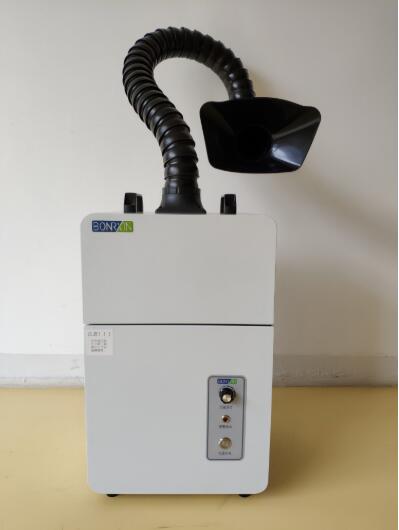

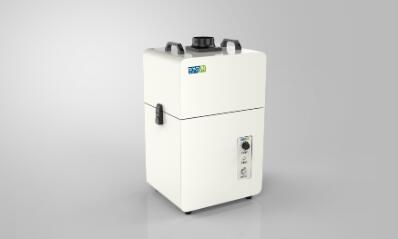

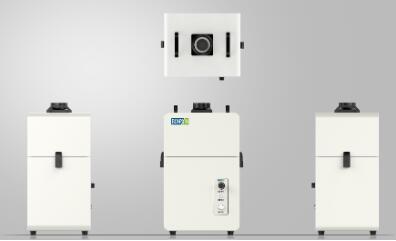

The BONRXIN BCA-S500 laser fume extractor is designed to effectively capture and filter the smoke and dust generated during processes such as welding, laser marking, and laser engraving. It not only removes particulate matter but also adsorbs and thoroughly filters harmful gases, including hydrocarbons, helping to prevent environmental pollution. This system is especially suited for industries where laser processing is widely used and where high standards for air quality are required, such as automotive manufacturing, electrical equipment production, food and medical sectors, smart card manufacturing, and the tobacco industry.
Advantages of the Laser Fume Extractor:
1. Integrated smoke filtration structure design enables easy installation and flexible mobility, with no need to lay external ductwork.
2. High-power brushless DC motor offers long service life, low noise, and high airflow output.
3. Triple-stage smoke filtration system ensures effective removal of harmful substances from fumes, safeguarding human health.
4. Built-in recirculating air filtration prevents indoor heating/cooling from being discharged outside.
5. Adjustable airflow with a flexible extraction arm made of ABS material, allowing for easy positioning across multiple workstations.
Partial Specifications of BONRXIN BCA-S500 Laser Fume Extractor
Rated Voltage: 220V / 50Hz
Rated Power: 500W
Motor Speed: 9000 rpm
Airflow Capacity: 500 m³/h
Static Pressure: 2000 Pa
Filtration Precision: 0.3 µm
Inlet Diameter: φ60 mm (inner diameter)
|
