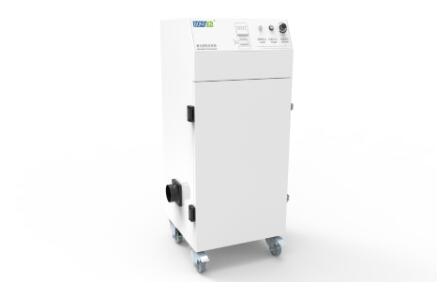

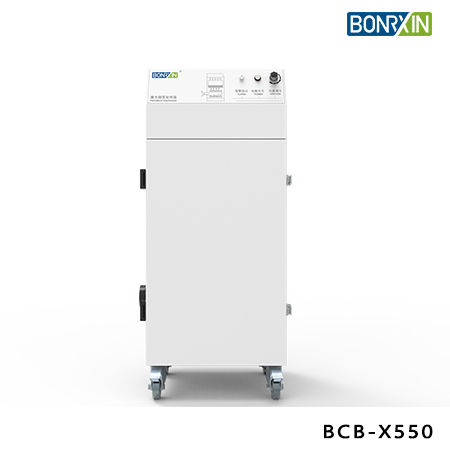

BCB-X550 smoke processor

Publisher: Wuxi Bonrxin Environmental Technology Co., Ltd. Release time£º2021-10-13 9:50:52 shut down£º1946 shut down
Product Details
  Bangersin BCB-X550 smoke processor is a brand new product in the BCB-X series launched in the fall of 2021. BCB-X550 smoke processor uses 500 watts of fan power, the overall structure design incorporates the industrial elements of the Bangxin brand, and adopts a bottom-up air inlet and outlet design. The chassis material also has two options of sheet metal spraying and stainless steel. , Which can meet the application needs of customers in different environments. In the field of laser marking, the use of multi-level filtration system is more targeted than traditional single-layer filter cartridge filtration and purification, which can make toxic and harmful smoke and dust have a better purification effect, and protect the health of employees and prevent the occurrence of occupational diseases.

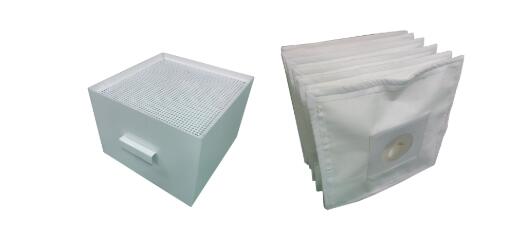

BCB-X550 smoke processor filter system:
The internal filtration system adopts a multi-layer filtration and purification method. The smoke and dust enter the lower organ bag filter with the airflow, which can intercept the inhaled large particles of smoke and dust in the bag filter, and the primary filtration effect can reach 90% filtration efficiency . The airflow in the chassis goes from bottom to top to the high-efficiency combined filter layer. The higher-grade H-grade material is selected in the combined filter to obtain a very good filtering effect. The filtering efficiency for 0.3 micron dust particles is 99.997% ; At the same time, the combined high-efficiency filter has an odor purification layer specially developed and deployed by Bangxin, which can effectively solve the smoke burnt smell generated by laser marking in relatively closed workshops such as pharmaceutical factories and food factories to meet customers' odor The need for purification.

Advantages of BCB-X550 smoke processor:

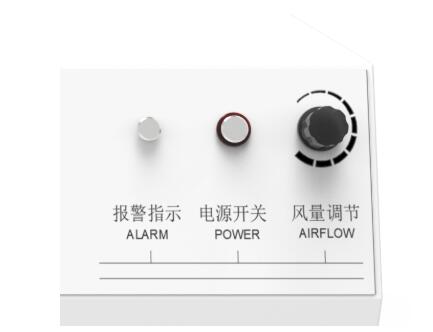

1. No installation required, simple operation, no gear limit knob speed adjustment, free adjustment of speed;
2. Using casters with brake function, it is more flexible and convenient in moving and fixing;
3. According to the different needs of the production environment, there are two types of chassis for sheet metal spraying and stainless steel;
4. According to the different needs of the installation environment, there is a choice of bamboo joints and flexible hoses;
5. The marking-level large body size is matched with the multi-layer organ filter bag to obtain a larger dust holding space;
6. The H-level high-efficiency filter layer cooperates with the separately deployed odor purification layer to further improve the smoke and dust purification rate and odor treatment;
7. The high-speed DC brushless fan not only provides strong suction, but also has lower wind noise and meets industrial noise standards;

BCB-X550, X750 smoke processor parameters:



BCB-X550

BCB-X750

Machine size£º

510*470*1050£¨mm£©

Rated power£º

500 W

1000 W

Handling air volume£º

560 m3/h

780 m3/h

Rotating speed£º

8000 rpm

12000 rpm

Rated voltage£º

220V/50Hz

Filtration accuracy£º

0.3 ¦Ìm

Filtration efficiency£º

99.997 %


BCB-X550, X750 smoke processor options£º

Material£º

White painted sheet metal sprayed body

Stainless steel metal body

Smoking pipe £º

Slub hard tube, standard length 1.3m, diameter 75mm

Flexible hose, standard length 2m, caliber 50mm
