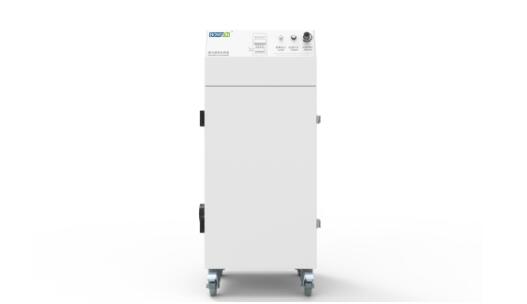

Launched in the fall of 2021, the BCB-X750 is a new addition to the BCB-X Series by BONRXIN. Featuring a 1000-watt high-power fan system, the BCB-X750 incorporates BONRXIN¡¯s signature industrial design language and adopts a bottom-to-top airflow structure. The housing is available in either powder-coated steel or stainless steel, offering flexibility for diverse operating environments.
Compared to conventional single-cartridge filters, the BCB-X750 utilizes a multi-stage filtration system, which delivers more targeted purification for hazardous smoke and dust generated during laser marking applications. This not only ensures higher filtration efficiency for toxic particles but also provides enhanced protection for operators¡¯ health and helps prevent occupational illnesses.
BCB-X750 Fume Processor ¨C Filtration System

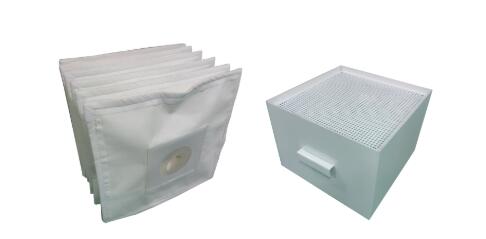

The internal filtration system of the BCB-X750 adopts a multi-stage purification process. As smoke-laden air enters the unit, it first passes through a lower-level pleated bag filter, which effectively captures large particulate matter. This primary stage alone achieves up to 90% filtration efficiency for coarse dust.
The airflow then moves upward to the high-efficiency composite filter layer. This layer incorporates advanced H-grade filtration media, offering exceptional purification performance¡ªachieving a 99.997% filtration efficiency for particles as small as 0.3 microns.
Additionally, the composite filter includes a proprietary odor control layer developed in-house by BONRXIN. This layer is specifically designed to neutralize burnt smoke odors commonly generated during laser marking processes, especially in enclosed environments such as pharmaceutical or food manufacturing workshops, meeting clients' demands for comprehensive air quality and odor management.
BCB-X750 Fume Processor ¨C Key Advantages

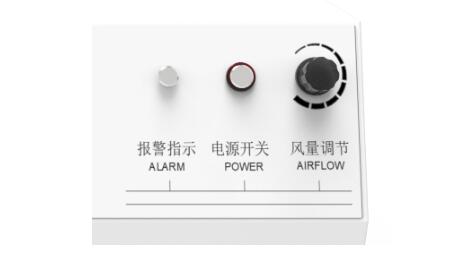

1. Plug-and-play operation with intuitive control: No installation is required. The processor features a stepless rotary knob for fan speed adjustment, allowing users to freely control the airflow intensity.
2. Flexible mobility with locking casters: Equipped with wheels that include brake functionality, the unit is easy to move and can be securely fixed in place when needed.
3. Dual enclosure options for varied environments: Available in both powder-coated sheet metal and stainless steel housing to suit different industrial conditions and corrosion-resistance requirements.
4. Customizable ducting options: Offers two types of air inlets¡ªtelescopic hard ducts or flexible hoses¡ªto adapt to diverse installation scenarios.
5. Large-capacity filtration structure: Designed with a laser-grade industrial chassis and multi-layer pleated filter bags, providing significantly increased dust-holding capacity.
6. High-efficiency filtration with odor control: Combines H-grade HEPA filtration with a proprietary odor purification layer, enhancing the removal of both fine particulate matter and unpleasant fumes.
7. High-speed DC brushless fan: Delivers strong suction power with reduced noise levels that meet industrial noise standards.
BCB-X550 / X750 - Fume Processor Specifications
|
|
BCB-X550
|
BCB-X750
|
|
Machine Size£º
|
510*470*1050£¨mm£©
|
|
Rated Power£º
|
500 W
|
1000 W
|
|
Air Flow Capacity£º
|
560 m3/h
|
780 m3/h
|
|
Fan Speed£º
|
8000 rpm
|
12000 rpm
|
|
Rated Voltage£º
|
220V/50Hz
|
|
Filtration Precisi£º
|
0.3 ¦Ìm
|
|
Filtration efficiency£º
|
99.997 %
|
Optional Accessory for BCB-X550 & X750
|
Enclosure Material£º
|
Powder-coated sheet metal body
|
|
Stainless steel metal body
|
|
Suction Hose £º
|
Segmented rigid pipe, standard length 1.3m, inner diameter 75mm
|
|
Retractable flexible hose, standard length 2m, inner diameter 50mm
|
|
