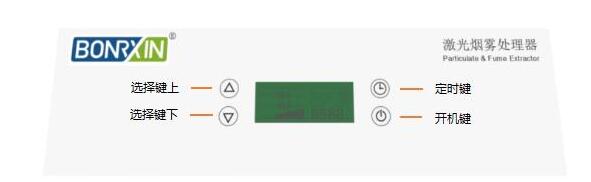

BCB-X550 Pro is a new flagship smoke processor launched in the fall of 2021. The BCB-X550 Pro smoke processor adopts a stainless steel body, which is more abundant than the BCB-X550 and X750 models in terms of configuration functions. This model has an alarm output signal function, which can provide a linkage signal for the automated production line. At the same time, it can also be equipped with a 3-color warning light (not standard) to make the signal indication more obvious. The control panel adopts touch button control, and is equipped with a liquid crystal display, which can check the running status of the machine, fan speed, filter status, etc., and can also remotely control the switch and timer shutdown functions.

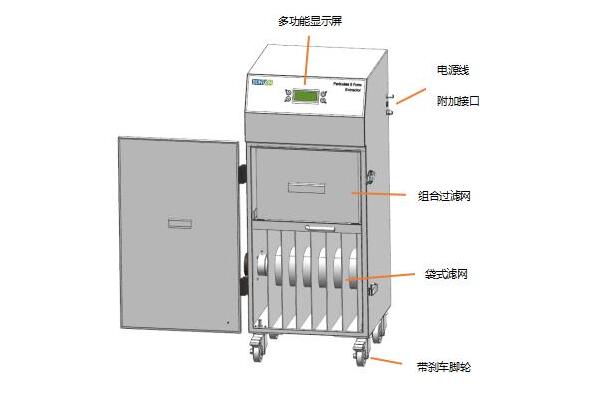

BCB-X550 Pro smoke processor filter system:

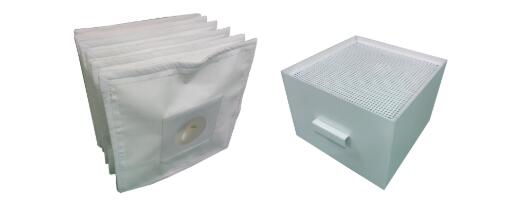

The internal filtering system of the smoke processor adopts a multi-layer filter purification method, and the lowest layer adopts a multi-layer organ bag filter, which can intercept the inhaled large particles of smoke and dust in the bag filter, and the primary filtration effect can reach 90% filtration efficient. The airflow in the chassis goes from bottom to top to the high-efficiency combined filter layer. The higher-grade H-grade material is selected in the combined filter to obtain a very good filtering effect. The filtering efficiency of 0.3 micron dust particles is 99.997% ;At the same time, the combined high-efficiency filter has an odor purification layer specially developed and formulated by Bangxin, which can effectively solve the smoke burnt odor generated during laser marking in relatively closed workshops such as pharmaceutical factories and food factories, so as to meet the customer's odor Purification needs.
Pre-filter small square box (non-standard): Designed for special environmental applications, which can intercept large particles of dust and effectively extend the life of the filter.
Advantages of BCB-X550 Pro smoke processor:
1. Alarm output signal function, which can provide linkage signals for automated production lines;
2. Visual controller, display multiple functions of running status and remote control operation;
3. According to the different needs of the production environment, there are two types of chassis for sheet metal spraying and stainless steel;
4. According to the different needs of the installation environment, there is a choice of bamboo joints and flexible hoses;
5. Pre-filtered small square box (non-standard), which can effectively intercept large particles of dust and prolong the life of the filter in response to special environments;
6. The H-level high-efficiency filter layer cooperates with the self-developed and optimized odor purification layer to further improve the smoke and dust purification rate and the treatment of peculiar smell;
7. The high-speed DC brushless fan not only provides strong suction, but also has lower wind noise and meets industrial noise standards;
BCB-X550 Pro, X750 Pro smoke processor parameters:
|
|
BCB-X550
|
BCB-X750
|
|
Machine size£º
|
510*470*1050£¨mm£©
|
|
Rated power£º
|
500 W
|
1000 W
|
|
Handling air volume£º
|
560 m3/h
|
780 m3/h
|
|
Rotating speed£º
|
8000 rpm
|
12000 rpm
|
|
Rated voltage£º
|
220V/50Hz
|
|
Filtration accuracy£º
|
0.3 ¦Ìm
|
|
Filtration efficiency£º
|
99.997 %
|
BCB-X550 Pro, X750 Pro smoke processor option
|
Smoking pipe£º
|
Slub hard tube, standard length 1.3m, diameter 75mm
|
|
Flexible hose, standard length 2m, caliber 50mm
|
|
Warning Light£º
|
3-color warning light
|
|
Pre-filter£º
|
Pre-filtered small square box
|
|
|
